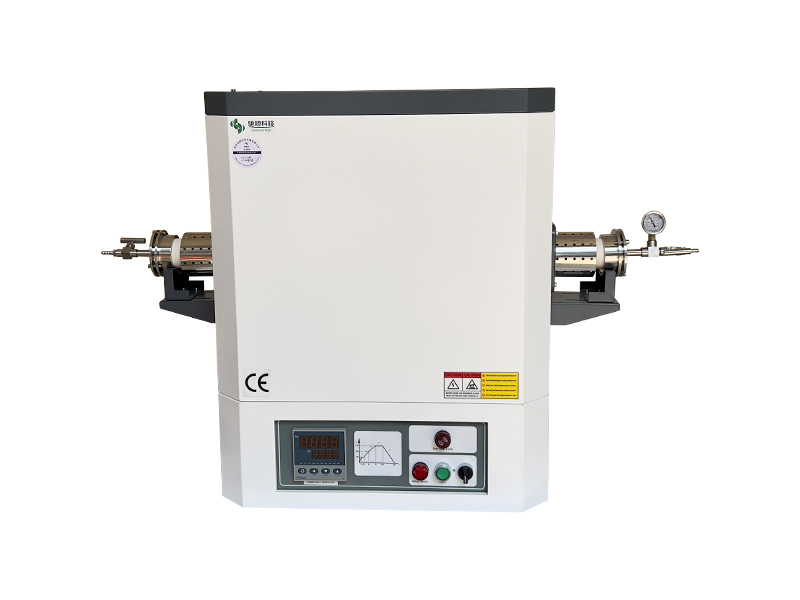

Brief description：1400 ℃ tube furnace is used in sintering and high temperature heat treatment of metal materials, ceramic materials, nano materials, semiconductor materials, powder metallurgy and other new materials in colleges and universities, scientific research instit
Model：TF1400Manufacturer：CHISHUN TECHUpdate time：2023-05-22Visits：1431TEL：+86 25-86795086 58000618
Skype：+86 139 1299 5166
Mobile：+86 139 1299 5166
E-mail：admin@nj-keyscience.com
http://www.nj-chishun.com
Furnace shell
The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low
Horizontal use mode, upper opening structure, easy to operate
Refractory material
Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption
Heating system
High-quality HRE heating element, free heat radiation heating in the furnace cavity, energy saving and high efficiency, long service life
The heating element is heated in a ring or on two sides, so as to achieve good uniformity in the furnace
Dual zone heating, single temperature zone can control temperature independently, better temperature uniformity
Temperature Control Panel
PID and SSR control mode, precise temperature control
Internationally standardized N-type nickel-chromium-silicon thermocouple with a temperature measurement range of 0-1300℃ and a long service life
The furnace door is equipped with a door-opening power-off safety protection switch
Program Controller
PID with SSR/SCR control mode, precise temperature control
International standard thermocouple, long service life
Equipped with heating indicator light and over-temperature alarm buzzer
Vacuum Atmosphere Function
With 304 stainless steel sealing flange to obtain vacuum or atmosphere in the furnace tube
High-quality quartz glass working tube, and metal or corundum working tube can also be selected to adapt to different working conditions
Technical Parameter
|
Model |
TF1400-I |
TF1400-II |
TF1400-III |
TF1400-IV |
|
Tube size |
Φ40x900mm |
Φ60x900mm |
Φ80x900mm |
Φ100x900mm |
|
Max Temperature |
1400℃ |
|||
|
Working temperature |
1300℃ |
|||
|
Heating zone size |
300mm |
|||
|
Power supply |
220V/2KW |
220V/3KW |
220V/4KW |
220V/5KW |
|
Heating element |
Silicon carbide rod (SIC) |
|||
|
Furnace material |
Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration |
|||
|
Furnace tube material |
High purity corundum tube |
|||
|
Temperature control accuracy |
±1℃ |
|||
|
Temperature measuring element |
S-type national standard platinum rhodium thermocouple |
|||
|
Temperature control instrument |
Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 4 groups of 8 program segments, program temperature rise, program heat preservation, program cooling |
|||
|
Heating rate |
1-30℃/min free adjustment |
|||
|
Furnace structure |
Furnace temperature control integrated structure; double-layer shell, air circulation and heat insulation |
|||
|
Sealing performance |
Both ends of the furnace tube are equipped with stainless steel metal flanges, matched with high-temperature PTFE gaskets, which can work under vacuum with a vacuum degree of ≤5pa (rotary vane vacuum pump) |
|||
|
atmosphere performance |
There are air inlets and outlets at both ends of the flange. The pressure gauge is installed on the metal flange. The precision needle valve can adjust the air intake and output, and can be fed with protective gases such as nitrogen, argon, and hydrogen. |
|||
|
equipment protection |
Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically |
|||
|
safety protection |
The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators |
|||
|
shell |
High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder |
|||
|
Quality Certification |
ISO9001 CE SGS TUV |
|||
|
The standard configuration |
1. 1 furnace body 2. 1 temperature controller 3. Power cord 3 meters 4. 1 thermocouple 5. 1 manual
6. One furnace hook 7. One pair of high temperature gloves 8. Two pipe plugs 9. One set of sealing flange |
|||
|
Optional accessories |
1. Optional rotary vane vacuum pump (vacuum degree ≤ 5pa) 2. Optional digital vacuum gauge ((1.0×105-1.0×10-1pa)) 3. Optional float flowmeter (range 60-600ml/min) 4 , optional corundum boat |
|||
|
Accessory |
1. Furnace body、2. Temperature controller、3. Power cord 3 meters、4. Thermocouple、5. Instruction manual、6. Crucible pliers、7. High temperature gloves |
|||
